SECTION 7 • OPTIONS & ACCESSORIES
290 Sundancer
®
A. TO START SYSTEM:
1. Make sure the seacock for the cooling pump is
open.
2. Turn ON the AIR CONDITIONER circuit breaker
on the Main Distribution panel.
3. Follow the instructions in the Air Conditioner/
Heater manual for control pad operation.
REFER TO OWNER’S MANUAL PACKET
FOR INSTRUCTIONS AND WARRANTY
INFORMATION.

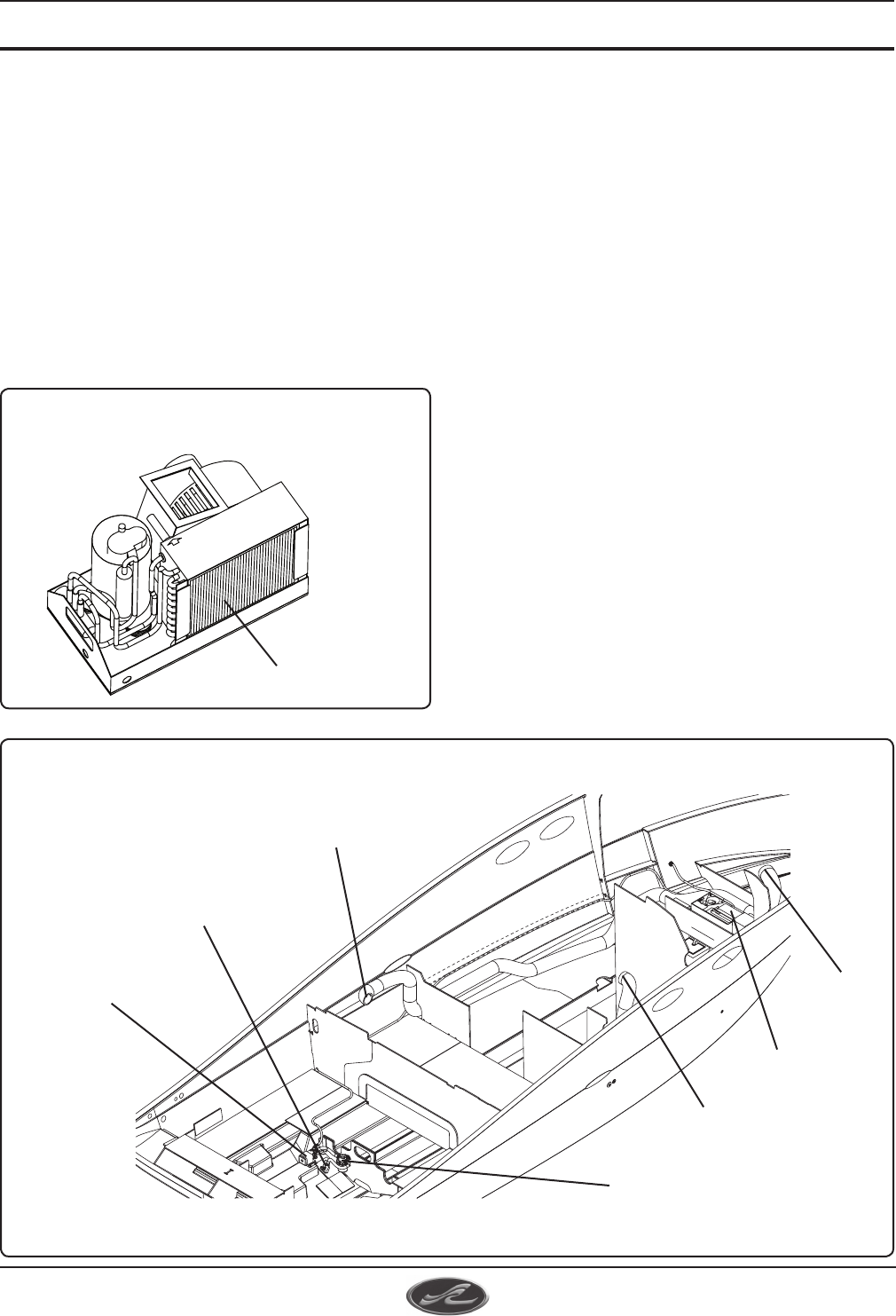

TYPICAL AIR CONDITIONING COMPRESSOR/
BLOWER (FIG. 7.2.1)
REMOVABLE FILTER
A/C / PUMP
AIR CONDITIONING & HEATING SYSTEM
(FIG. 7.2.2)
A/C INTAKE SEACOCK
A/C DUCT VENT
MID STATEROOM
A/C UNIT
A/C DUCT VENT
CABIN
4. WATER SYSTEM
The fresh water system consists of a 28 gallon
(106 liter) water tank, 12 volt water pump and water
system fi lter.
The fresh water system is activated by the FRESH
WATER PUMP switch on the Main Distribution
panel in the Cabin (See Fig. 6.9.1).
To begin initial operation:
1. Fill the water tank from a source known to
provide safe, pure drinking water by removing
the cap marked WATER located on the starboard
mid deck and inserting the water hose nozzle in
the opening. Do not mistake the fuel fi ll or the
waste plate for the water tank fi ll cap.
2. Turn ON the FRESH WATER PUMP breaker,
located on the Main Distribution Panel.
3. Open the sink faucet to allow any air trapped in
the water line to dissipate.
4. Shut off faucet as fl ow becomes free of air.
A/C STRAINER
A/C DUCT
FWD V-BERTH
